80mm-500mm Multi Rip Saw Machine Circular Sawmill For Lumber Cutting

Place of Origin : Shandong Province, China

Brand Name : SH

Certification : ISO9001

Model Number : SHYM200,SHYM250, SHYM300, SHYM350,SHYM400,SHYM450

MOQ : 1 SET

Price : USD3000-USD15000/set

Packaging Details : wooden pallet or iron frame export pallet

Delivery Time : within 20 days

Payment Terms : T/T or L/C at sight, Western Union

Supply Ability : 100sets/month

Name : Multi ripsaw

Usage : woodworking

Type : Rip Saw

Feeding type : Auto feeding

Blade arrange : Up/down

Voltage : 380V/3phase/50HZ or as cusmer needs

Power : 22KW*2-75KW*2

Max. sawing log diameter : 80MM-500MM

Warranty : 12 months

After-sales Service Provided : Engineers available to service machine overseas

Contact Now

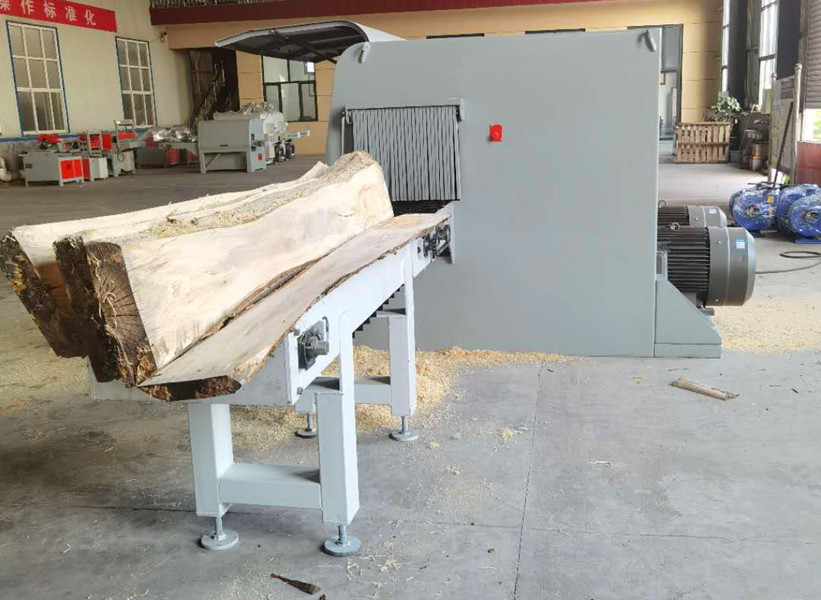

Multiple Blade Circular Sawmill Multiple Rip Saw Mill for Round Logs or Lumber Cutting

Log Cutting Multiple Blade Ripsaw

Maximum cut log diameter can reach 500mm(20'')

Specifications:

Model	SHYM150	SHYM200	SHYM240	SHYM260	SHYM285	SHYM330
Sawing Log Diameter	20-150mm	60-200mm	80-240mm	100-260mm	130-285mm	150-330mm
MinSawing Log Length	600mm	600mm	600mm	600mm	600mm	600mm
Main Motor power	18.5KW*2	22KW*2	30KW*2	30/37KW	30/37KW	37KW*2
Spindle Diameter	50mm	50mm	60mm	60mm	60mm	70mm
Saw Blade Diameter	255mm	305mm	355mm	380mm	405mm	450mm
Weight	1570KG	1720KG	2200KG	2300KG	2350KG	2550KG

Model	SHYM340	SHYM360	SHYM400	SHYM430	SHYM480
Sawing Log Diameter	150-340mm	170-360mm	180-400mm	200-430mm	250-480mm
Min Sawing Log Length	600mm	600mm	600mm	600mm	600mm
Main Motor power	45KW/55KW	55KW*2	55KW*2	75KW*2	75KW*2
Spindle Diameter	80mm	80mm	80mm	100mm	100mm
Saw Blade Diameter	480mm	500mm	550mm	600mm	650mm
Weight	2650KG	2680KG	3500KG	3880KG	4100KG

80mm-500mm Multi Rip Saw Machine Circular Sawmill For Lumber Cutting

Double Spindle Panel Cutting Multiple Blade Rip Saw

80mm-500mm Multi Rip Saw Machine Circular Sawmill For Lumber Cutting

Double Shaft Multi Blades Rip Saw for planks/lumber

Specifications:

Model	SH60-300	SH80-300	SH100-300	SH120-300	SH150-300
Max. Sawing width	250-300mm	250-300mm	250-300mm	250-300mm	250-300mm
Max. Sawing thickness	60mm	30-80mm	40-100mm	50-120mm	60-150mm
Motor	18.5KW/22KW	22KW*2	22KW*2	22KW*2	30KW*2
Blade Diameter	150MM	180mm	210mm	230mm	255mm
Spindle Diameter	50mm	50mm	50mm	50mm	50mm
Weight	1190kg	1260kg	1420kg	1560kg	1620kg

80mm-500mm Multi Rip Saw Machine Circular Sawmill For Lumber Cutting

Double Shaft Multi Blades Rip Saw for planks/lumber

Specifications:

Model	SH100-400	SH120-400	SH160-400	SH200-400	SH250-400	SH270-400	SH290-400
Sawing width	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm
Sawing thickness	40-100mm	50-120mm	70-160mm	90-200mm	110-250mm	130-270mm	150-290mm
Motor	30kw*2	37kw*2	37/45kw	37/45kw	45kw*2	45/55kw	55KW*2
Saw Blade Diameter	180MM	230mm	255mm	230mm	280mm	280mm	380mm
Spindle Diameter	70mm	70mm	70mm	80mm	80mm	80mm	100mm
Weight	2330kg	2450kg	2480kg	2550kg	2580kg	2620kg	2700kg

80mm-500mm Multi Rip Saw Machine Circular Sawmill For Lumber Cutting

Water Cooling System

Control Panel

80mm-500mm Multi Rip Saw Machine Circular Sawmill For Lumber Cutting

Packing

80mm-500mm Multi Rip Saw Machine Circular Sawmill For Lumber Cutting
